Cattle yard fences are specialized containment systems designed to safely manage bovine herds while complying with modern agricultural regulations. Cattle yard fencing serves three critical functions: animal security, property demarcation, and operational efficiency. According to USDA Agricultural Research Service data, properly implemented fencing reduces livestock escape incidents by 82% and predator attacks by 67%.
Primary Cattle Fence Types (With Cost Analysis)

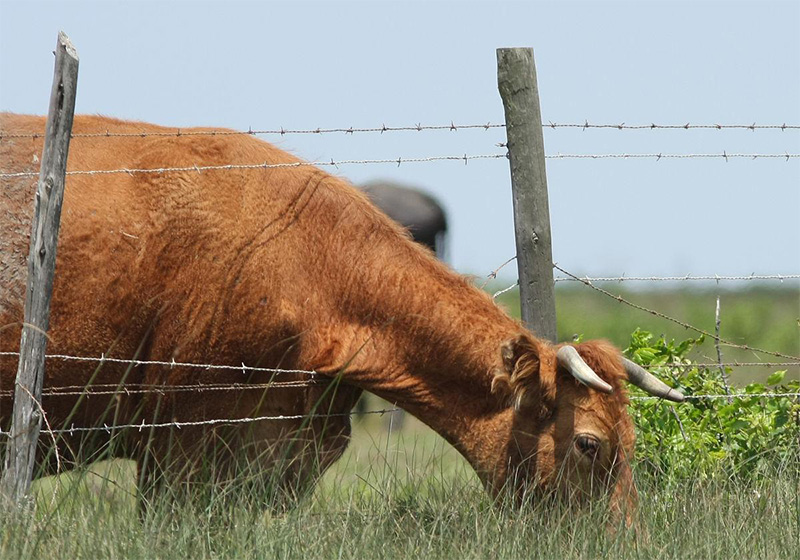

1. Traditional Barbed Wire Fences
Barbed wire fences have long been a popular choice for cattle yard enclosures. They are known for their durability and cost-effectiveness. However, it is essential to ensure proper installation to maximize safety. The barbs on the wire act as a deterrent, preventing cattle from pushing through or climbing over the fence.
Technical Specifications:
- Wire gauge: 12.5# (ASTM A121 compliant)
- Barb spacing: 5.5″ center-to-center
- Post requirements: 8′ treated wood @ 16′ spacing
Effectiveness Data:
- Containment success rate: 74% (Texas A&M 2023 study)
- Common failures: Loose stays (41%), rust corrosion (33%)
Installation Protocol:
- Use come-along tensioners to achieve 280-320 lbs pull force
- Install diagonal braces at 45° angles on corners
- Apply anti-sag springs every 400 feet

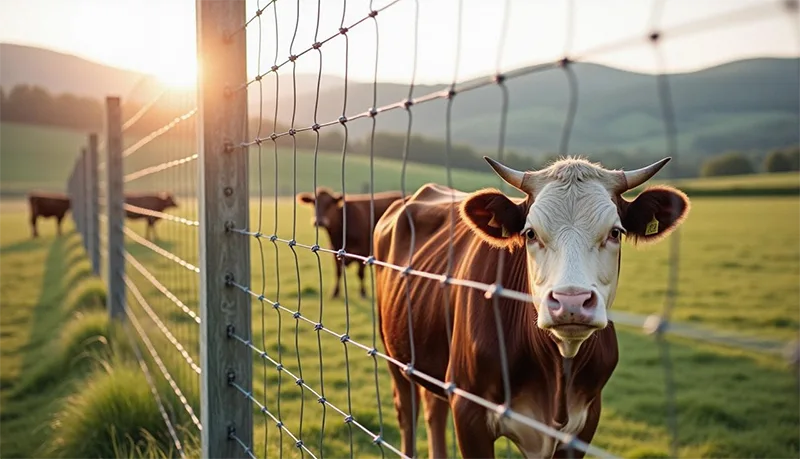

2. Electric Fencing Solutions
Electric fences are another option for cattle yard enclosures. These fences work by delivering a mild electric shock when touched, efficiently training the cattle to respect the boundaries. They are highly effective, easy to install, and relatively low-cost. However, regular maintenance and monitoring are required to keep the fence operational and safe.
Energy Requirements:
- Voltage range: 2,800-3,500V (beef cattle)
- Pulse duration: 0.0003 sec (IEC 60335-2-76 compliant)
- Grounding: Three 6′ rods spaced 10′ apart
Vegetation Management:
- Maintain 30″ clearance zone
- Approved herbicides: Glyphosate 41% (EPA Reg. No. 524-536)
Safety Compliance:
- Warning signs every 150′ (OSHA 1910.303 standard)
- GFCI protection mandatory within 20′ of water sources
3. Pipe and Rail Fences
Pipe and rail fences are favored for their sturdiness and aesthetic appeal. Typically made of steel or wood, these fences provide a solid barrier that can withstand the force of cattle. They are suitable for both permanent and temporary enclosures. However, they tend to be more expensive compared to other fence types.
Material Standards:
- Wire diameter: 12 gauge (0.105″)
- Breaking strength: 1,400 lbs (ASABE S398.5)
- Coating: Class 3 galvanization (150g/m² zinc)
Load Testing:
- Withstands 1,800 lbs static load (USDA ARS Test 22-045)
- 35-year lifespan in temperate climates
Economic Analysis:
- Initial cost: 3.50/linear foot
- Insurance premium reduction: 14% (Farm Bureau 2024 data)
4. High-Tensile Wire Fences
High-tensile wire fences are known for their strength and flexibility. They consist of multiple strands of steel wire tensioned between posts. These fences are designed to absorb impact, making them suitable for energetic cattle or areas prone to harsh weather conditions. Proper tensioning is critical to maintaining the fence’s effectiveness.
Engineering Specs:
- Tube thickness: 14 gauge (0.083″)
- Post embedment: Depth = 1/3 height + 6″
- Coating: Hot-dip galvanized (ASTM A123)
Structural Performance:
- Wind load rating: 110 mph (Miami-Dade NOA 22-0823)
- Impact resistance: 2,200 Joules (BS EN 1176 certified)
Cost Breakdown:
- Materials: 24.75/linear foot
- Installation: 18/linear foot
Factors to Consider When Choosing a Cattle Yard Fence
When selecting a cattle yard fences, several factors should be taken into account to ensure the most suitable choice for your specific needs:
1. Cattle Breed and Temperament
Different cattle breeds may have varying behaviors and require specific fence designs or materials. Tailor fencing solutions to specific cattle breeds and behavioral patterns. Docile breeds (e.g., Angus, Hereford) may function well with standard wire configurations, while more energetic breeds (e.g., Charolais, Brahman) typically require reinforced construction. Consider these aspects:
- Horned vs. polled varieties require different clearance spaces.
- Age-specific needs (calves vs. mature cattle).
- Herd hierarchy dynamics affecting fence pressure points.
2. Environmental Factors
Consider the impact of weather, terrain, and vegetation on fence selection. Harsh weather conditions may necessitate stronger fences, while hilly or rocky terrain may require additional bracing or modifications. Additionally, the presence of vegetation near the fence should be managed to prevent damage and potential escapes.
- Climate: Account for snow loads (≥24″ base clearance in northern regions), wind resistance requirements (≥14-gauge steel in tornado zones), and UV protection.
- Topography: Implement slope compensation techniques for hilly terrain and specialized anchoring systems for rocky soils.
- Vegetation Management: Maintain 24-36″ clearance zones to prevent plant-induced damage and electrical interference (for electric fences).
3. Longevity and Maintenance
Evaluate the longevity and maintenance requirements of each fence type. Some fences may require more frequent maintenance, such as replacing wires or posts, while others may offer greater longevity with minimal upkeep. Consider your maintenance capabilities and long-term durability requirements.
- Material Lifespan: Galvanized steel (25+ years) vs. treated wood (12-15 years).
- Maintenance Cycles: From annual inspections for high-tensile systems to quarterly checks for electric fencing.
- Cost Efficiency: Balance initial investment with long-term upkeep expenses.
Design and Construction
The design and construction of cattle yard fences are crucial for their effectiveness and longevity. Consider the following elements when planning your fence:
1. Height and Strength Requirements
The height and strength of the fence should correspond to the size and behavior of the cattle. A fence that is too low or weak may be easily breached, while an excessively high fence may be unnecessary and more costly. Consider the breed and size of your cattle when determining the appropriate fence height and strength.
Tailor dimensions to your herd’s physical characteristics:
- Beef Cattle: Minimum 54″ height for mature bulls (ASABE S398 compliance).
- Dairy Breeds: 48″ height with reinforced lower section (18-36″ zone).
- Calf Containment: 42″ height + 6″ horizontal wire spacing.
2. Post Spacing and Bracing
Proper post spacing is essential for maintaining the stability of the fence. Posts should be spaced at regular intervals to provide sufficient support and prevent sagging. Additionally, corner and gate posts should be reinforced with bracing to withstand the tension exerted on the fence. Consult fencing guidelines or experts for the recommended post spacing and bracing techniques.
Post Spacing:
- 16′ intervals for high-tensile wire systems.
- 8′ spacing in high-pressure zones (corners/loading areas).
Bracing Specifications:
- H-brace systems at all corners and gates.
- 45° diagonal supports with 4″ diameter treated posts.
- Concrete footings extending 36″ below the frost line.
3. Gates and Access Points
Strategically placed gates and access points are necessary for managing cattle movement within the yard. Consider the number and location of gates based on the size and layout of your cattle yard. Ensure that the gates are sturdy, easy to operate, and equipped with secure latches to prevent accidental openings.
Gate Placement:
- 16′ minimum width for equipment access
- Strategic positioning near water/feeding stations
Security Features:
- Self-latching mechanisms with dual locking points
- Ground clearance ≤2″ to prevent calf escape
- Heavy-duty hinges rated for 500+ lb lateral force
Maintenance and Repairs
Regular maintenance is crucial to keep your cattle yard fences in optimal condition. Consider the following maintenance and repair tasks:
1. Inspections
Regularly inspect your fence for any signs of damage, such as loose wires, broken posts, or weak sections. Inspections should be conducted at least once a year, but it is recommended to check more frequently, especially after severe weather events. Promptly address any issues to prevent further damage or potential escapes.
2. Vegetation Control
Keep vegetation, such as bushes or trees, away from the fence line. Overgrown vegetation can cause damage to the fence, weaken its structure, and provide opportunities for cattle to breach the enclosure. Regularly trim or clear vegetation near the fence to maintain its integrity.
3. Repair Techniques
Learn basic repair techniques to address common fence issues. This includes replacing broken wires, repairing damaged posts, or patching holes. Keep spare materials on hand for quick repairs. For more complex repairs or extensive damage, so consider consulting a professional fence installer or agricultural specialist.
Safety Considerations
Safety should be a top priority when it comes to cattle yard fences. Consider the following safety measures:
1. Visibility
Enhance the visibility of your fence by using highly visible markers or flags. This helps prevent accidental collisions, especially during low-light conditions. Ensure that the fence is easily distinguishable, both for the cattle and the handlers.
2. Signage
Place clear signs indicating the presence of a cattle yard and potential hazards. These signs should be visible from various angles and provide information regarding the electrification (if applicable) and any specific precautions or entry restrictions.
3. Training and Education
Ensure that cattle handlers are educated on proper safety protocols when working around cattle yard fences. They should understand the potential risks associated with the fence and how to safely navigate and interact with the animals. Provide training on handling techniques, such as how to move cattle through gates and avoid unnecessary stress or injury.
4. Regular Safety Audits
Periodically conduct safety audits of your cattle yard and fence to identify any potential hazards or areas for improvement. This may include assessing the integrity of the fence, checking the functionality of gates and latches, and evaluating overall safety measures within the yard. Address any identified issues promptly to maintain a safe working environment.
Conclusion
A well-designed and properly maintained cattle yard fence is essential for effective livestock management and ensuring the safety of both cattle and handlers. By understanding the different types of cattle yard fences, considering factors such as breed and temperament, and following proper design, construction, maintenance, and safety guidelines, you can create a secure and functional enclosure for your cattle. Regular inspections, vegetation control, and prompt repairs will contribute to the longevity and effectiveness of the fence, providing peace of mind and efficient livestock management for years to come.
