Square Strut Post Base
– Easy and simple installation.
– High-quality steel is made to be stronger and more stable.
– Special craftsmanship makes the product last longer.
– Products are customizable and have a wide range of uses.
– Can be packaged individually to ensure safe transportation and convenient sales.
– Special pricing is available for bulk orders.

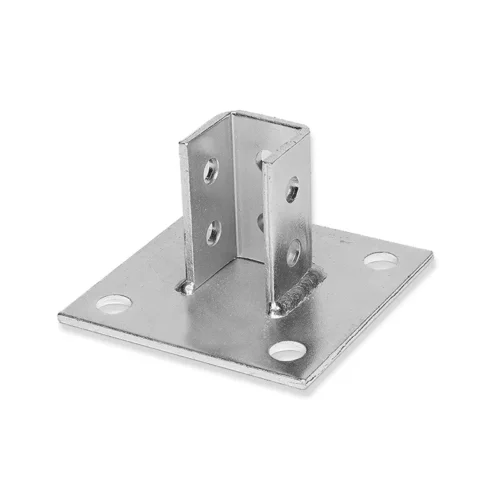

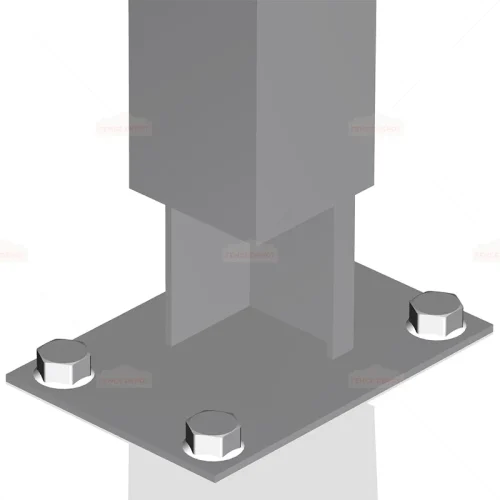

Square Strut Post Base has a square design as a whole, with four screw holes on the panel and a column structure on it. It is similar to one of our Rectangle Strut Post Base products, but the panel is rectangular. When fixing the fence posts, insert the fence posts into the post part of the product and fix the panel to the ground with four screws. Installing the product does not require complicated operations, so it is relatively easy.
Our products are made of high-quality steel and are connected using welding processes, making them more stable and stronger overall. In terms of technology, choose powder spraying or hot-dip galvanizing, so it is more rust-proof and corrosion-resistant and has a longer service life.
We have two standard sizes that can fit most fence posts. At the same time, the product’s adaptability range is also very wide and suitable for square columns such as door pillars and wood posts. It should be noted that it must be clicked into the bottom during installation to ensure safety. As a professional manufacturer, we can customize products according to customer needs to adapt them to more scenarios.
Product Specification:
| Model No | FDCI381001 | FDCI381002 |
| Description | Center Base | Offset Base |
| CTN | 6 | 8 |
| KG | 3 | 4 |
| Hole diameter |
3/4″ | 3/4″ |
| Finish | Electro-Galvanized | Electro-Galvanized |
| Material Specification |
ASTM B633 (Type III SC1 (0.2 mil thickness)) | ASTM B633 (Type III SC1 (0.2 mil thickness)) |
| Material | Carbon Steel | Carbon Steel |
| Material Specification | ASTM A575 or ASTM A1011 GR33 | ASTM A575 or ASTM A1011 GR33 |
| Type |
Single Post | Single Post |

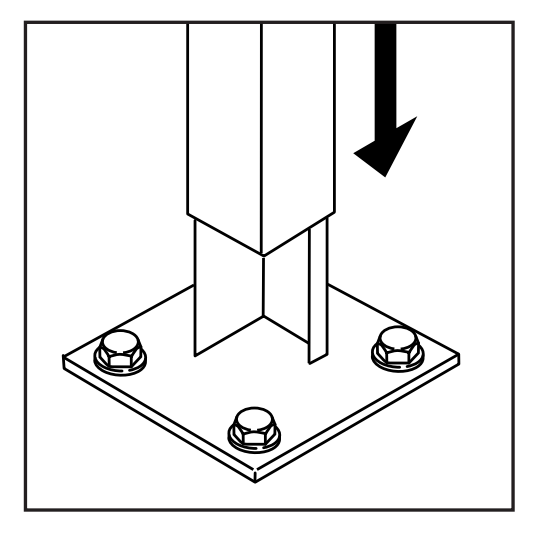

Application Scenario:
- Material: The post base is made of galvanized steel, providing strong support for single channel.
- Dimensions: The base plate measures 5.9 x 5.9 inches (L x W), the mounting hole size is 0.55 inches, and the channel hole diameter is 0.51 inches.
- 4-hole square mounting: There are 4 mounting holes on the base, which is easy to install and has strong anti-tilting ability; the thick base can firmly fix the single post to the floor.
- Sturdy assembly: With galvanized coating, this post base is corrosion-resistant and long-lasting.
- Ideal for: fixing all 1-5/8-inch single post channels, post fences to floors and other surfaces.
Material and surface treatment – Standard:
- Parent material: Steel meets ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576 or A635.
- Electro-Galvanized (EG): Meets ASTM B633, Type III SC1.
- Unistrut Defender (DF): Meets ASTM A1059.
- Hot-Dip Galvanized (HG): Meets ASTM A123 or A153.
- Perma-Green (GR): Meets commercial standards for powder coatings.
- Perma-Gold (ZD): Meets ASTM B633, Type II SC1 or SC3.
- Plain Grain (PL): No finish.
Advantages of Square Strut Post Base:
- The product does not require complicated operations during installation, so it is convenient and easy.
- The square strut post base has a wide range of adaptability and is also suitable for other door posts, furniture, and other structures.
- Using the product to fix fence posts is more stable and safe.
- High-quality steel is stronger and more durable.
- The special process improves the product’s ability to withstand harsh environments and has a longer service life.
- Thicken the square strut post base to reduce mutual friction and ensure safe logistics and transportation.
