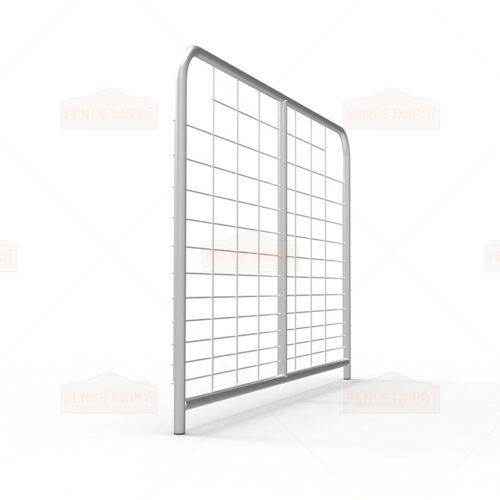

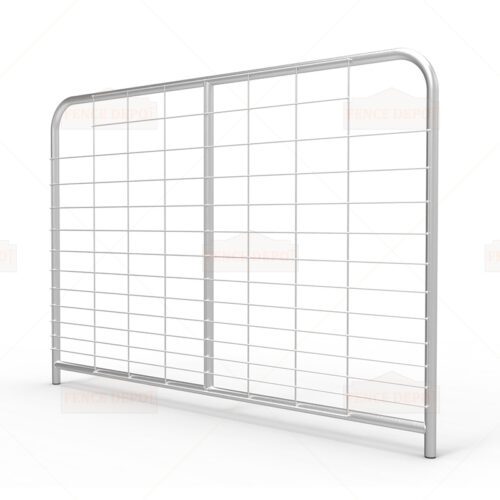

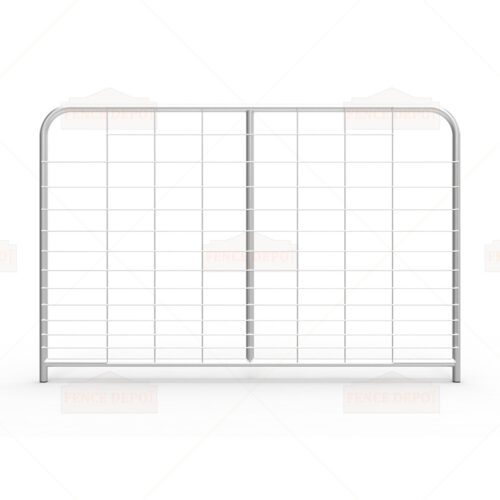

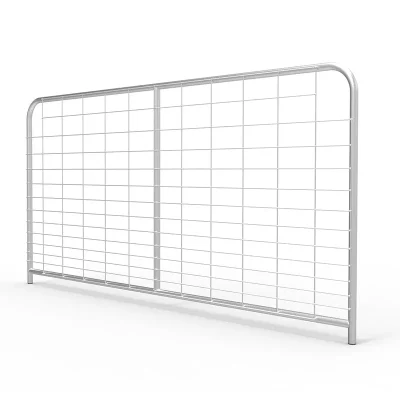

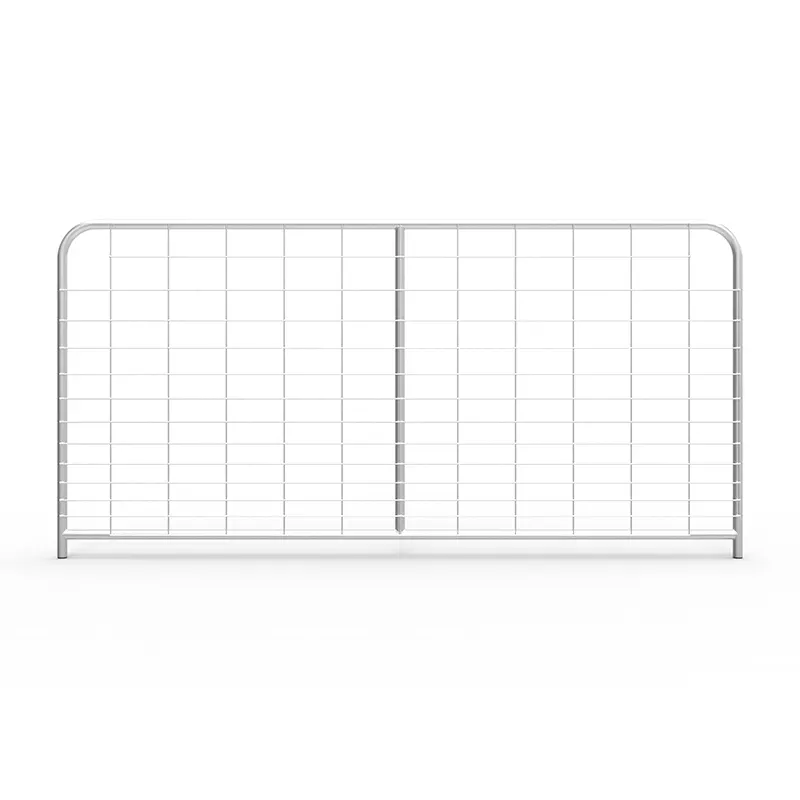

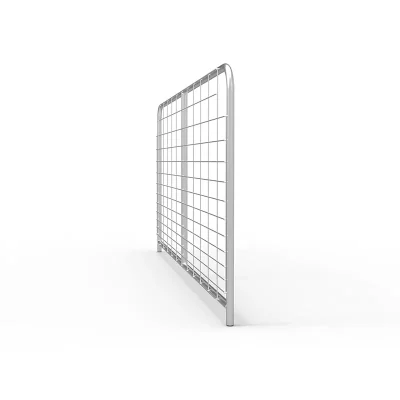

8ft I-Stay Metal Gradient Mesh Infill Farm Gate 2380mm(7.8ft)x1170mm(3.8ft)
– No sharp edges, ensuring safety for operators and livestock, preventing injuries.
– Filled mesh ensures strength and durability.
– Hot-dip galvanized to maintain quality and ensure corrosion resistance.
– The all-around welding process ensures the stability of the overall frame structure.
– Product size, material, and craftsmanship can be customized.
– Special pricing is available for bulk orders.
8ft I-stay metal gradient mesh infill farm gate is a multi-functional and value-for-money farm gate. All our farm gates are manufactured from high quality 25Nb hot dipped galvanised pipe with a wall thickness of 2.0mm. All wire routes and fence wires are securely welded to the frame.

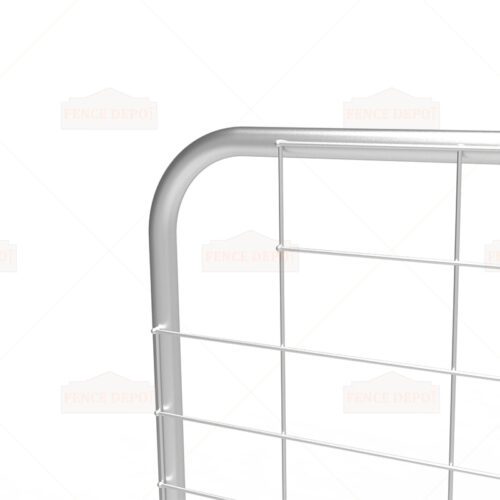

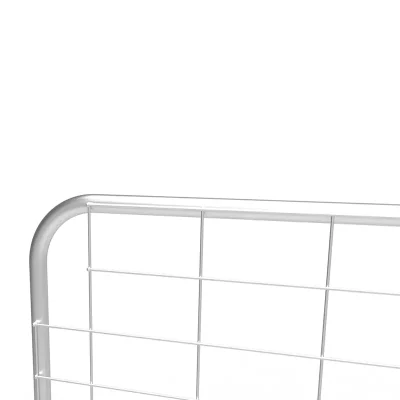

The metal gradient mesh infill farm gate has a rounded top tube so the number of welds at the top is reduced by 2 which prevents the frame from breaking at the top corners. At the same time, it makes it look friendly and more perfect, and generous. We weld all sides and joints for optimal frame strength. At the same time, the product surface is cleaned to remove residues to ensure the safety of animals and people.
The metal gradient mesh infill farm gate has a graded mesh infill design, and the density of the mesh can be adjusted to adapt to the requirements of more environments. The standard size of this model is 2380mm (7.8ft) long x 1170mm (3.8ft) high. At the same time, we have a variety of I-Stay Farm Gates specifications for you to choose from. Of course, the size, grid, and color of our products can be customized as per customers’ requirements.
Product Specification:
| Stay Type | I-Stay |
| Material |
Galvanized Steel |
| Height | 1170mm (7.8ft) |
| Length | 2380mm (3.8ft) |
| Mesh Infill | 5mm Graduated |
| Brace | 1 Brace |
| Weight | 18kg |
| Finish | Galvanized & Spraying (optional) |
Advantage of 8ft I-Stay Metal Gradient Mesh Infill Farm Gate:
- Height: 1170mm, providing a reliable height to effectively restrict livestock access.
- Material: Constructed of 25NB pipe with an outer diameter of 33.5mm and a wall thickness of 2.0mm, ensuring the gate is sturdy and durable.

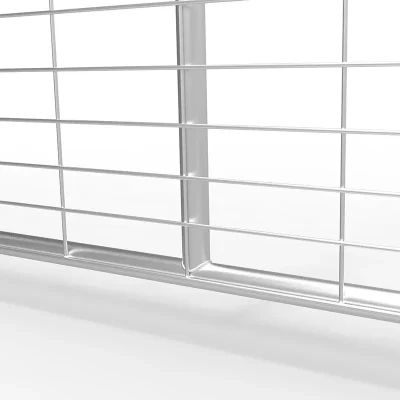

- Graded Grid Infill: Equipped with welded grid inserts with a graded pattern (200mm x 100mm / 200mm x 32mm x 5.0mm). This design increases the grid density in the lower part of the gate to accommodate animals of various sizes.

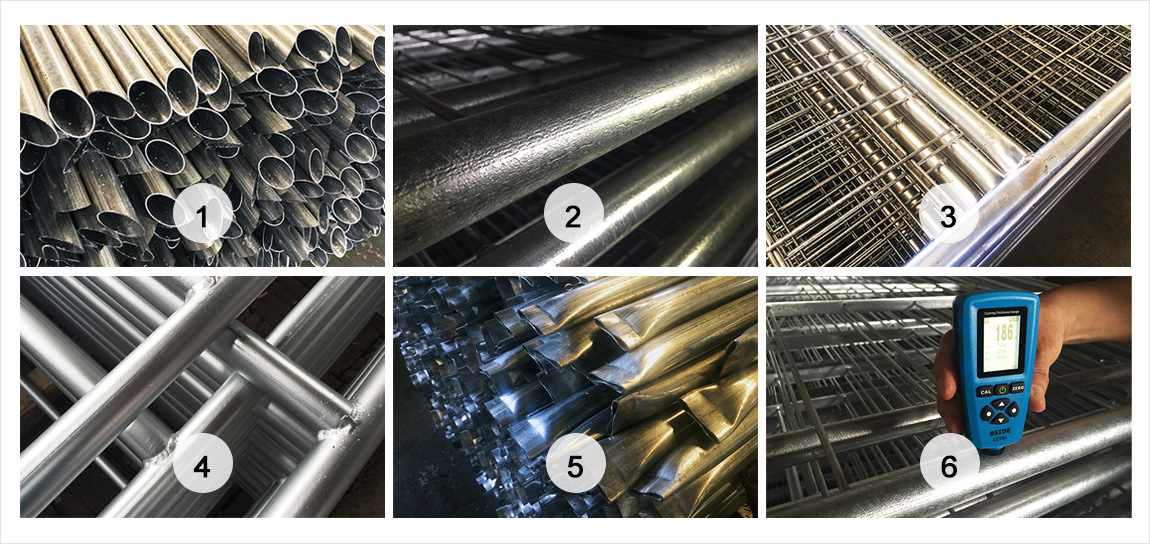

- Surface Treatment: All pipes are galvanized inside and outside, fully welded and painted within 4 hours after welding to prevent rust, and then painted until the primer is dry until the rust-proof light.

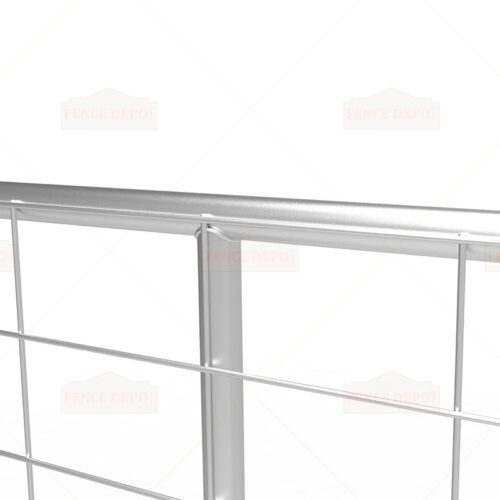

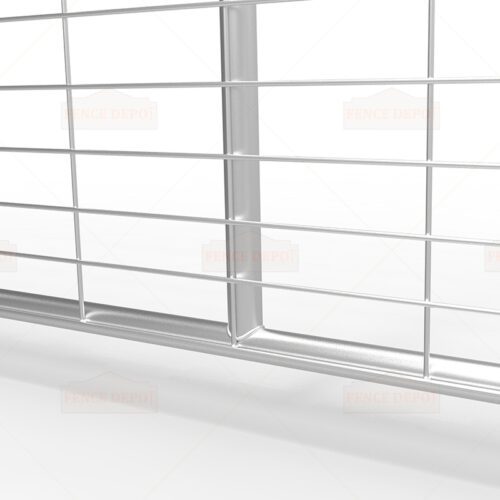

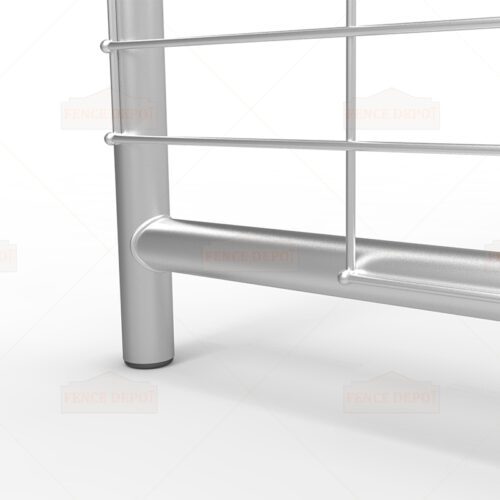

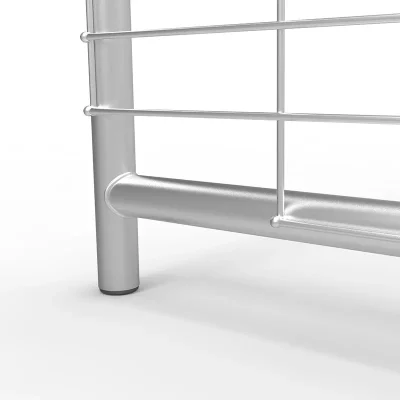

- Enhanced Strength: All joints are scalloped and welded, rather than crimped or flattened, to significantly improve the strength and durability of the gate.

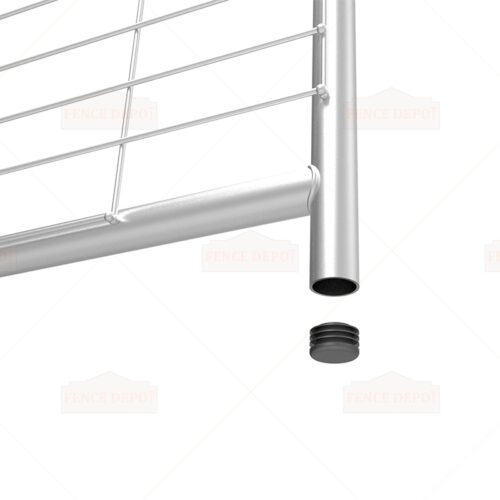

- Edge Protection: No sharp edges, keep your hands and animals safe and prevent injuries.
- Quick Installation: No need to cut wire mesh; hinges install quickly
Available Sizes:
In addition to the 8-foot I-stay farm gate, other sizes of farm gates are available to suit your needs.
| Product Code | Wide Size | Height | No. of I-Stay | Gate Size |
| FDF205001 | 850mm (2.7ft) | 1170mm (3.8ft) | 1 | 25NB |
| FDF205002 | 1000mm (3ft) | 1170mm (3.8ft) | 1 | 25NB |
| FDF205003 | 1160mm (3.8ft) | 1170mm (3.8ft) | 1 | 25NB |
| FDF205004 | 1460mm (4.7ft) | 1170mm (3.8ft) | 1 | 25NB |
| FDF205005 | 1780mm (5.8ft) | 1170mm (3.8ft) | 1 | 25NB |
| FDF205006 | 2380mm (7.8ft) | 1170mm (3.8ft) | 1 | 25NB |
| FDF205007 | 2980mm (9.7ft) | 1170mm (3.8ft) | 1 | 25NB |
| FDF205008 | 3580mm (11.7ft) | 1170mm (3.8ft) | 1 | 25NB |
| FDF205009 | 4180mm (13.7ft) | 1170mm (3.8ft) | 1 | 25NB |
| FDF205010 | 4780mm (15.6ft) | 1170mm (3.8ft) | 1 | 25NB |

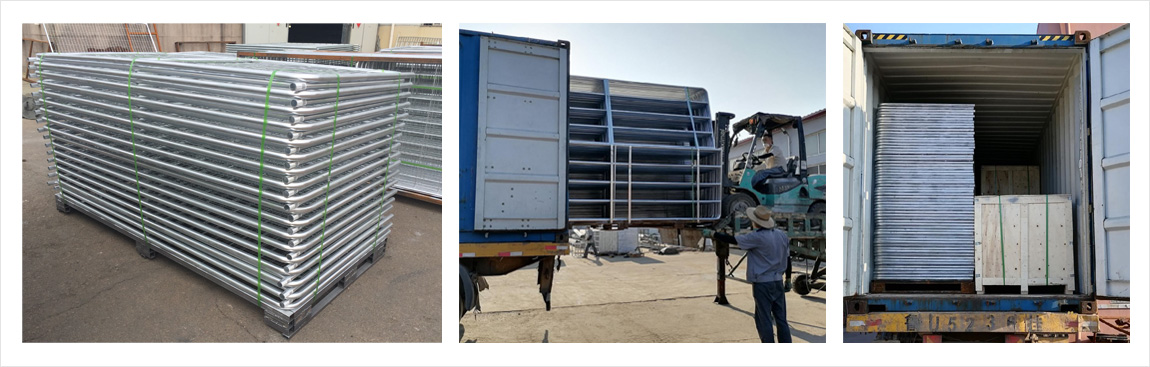

The package is extremely important for the shipping of an 8ft I-stay metal gradient mesh infill farm gate. We use heavy-duty steel frames + strapping straps for packaging, which can reduce mutual friction and ensure safe transportation. Our customers can easily unload the pallets using a forklift. If you have other needs, we will pack them strictly according to your requirements. We use sea transportation, and the transportation is fast and stable.
