Fixed Knot Fence, Cyclone Fixed Knot Woven Wire
– The metal wire winding and knotting method has excellent overall stability.
– The products have a wide range of applications.
– High-strength carbon steel wire, higher strength, toughness, and more durable.
– The galvanizing process makes it suitable for use in various environments and has a longer service life.
– The knotting method, material, and craftsmanship of the product can be customized.
– Special pricing is available for bulk orders.
FENCE DEPOT has many years of experience in the production research and development of fence products. Our advanced production equipment and skilled production staff ensure efficient production and quality. The cyclone fixed-knot woven wire fence we offer is a highly secure wire mesh product.

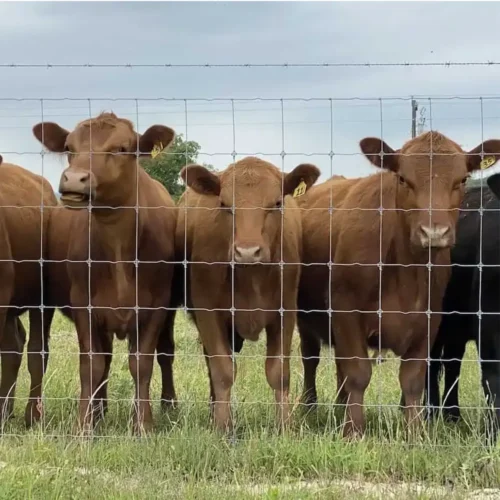

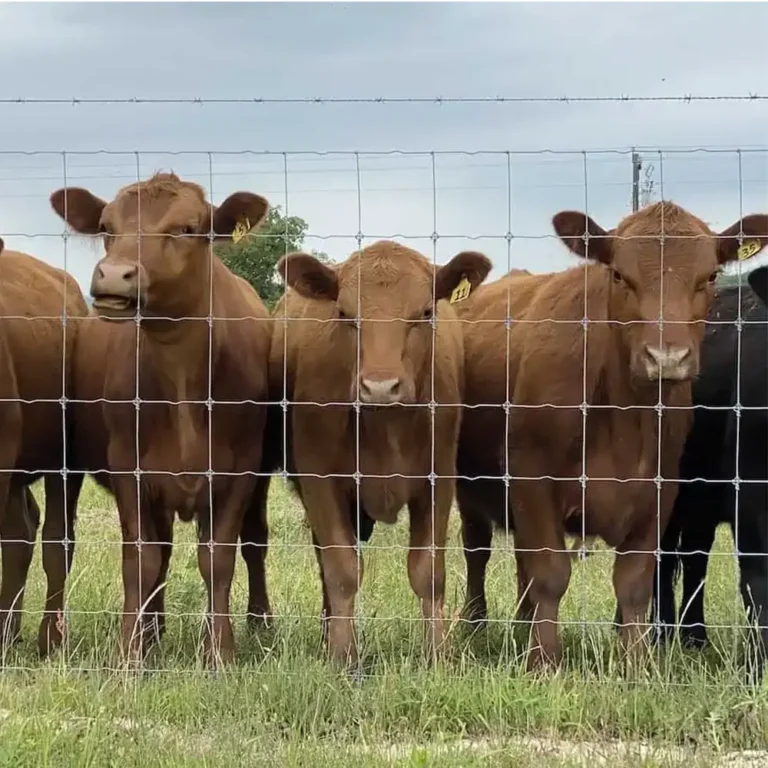

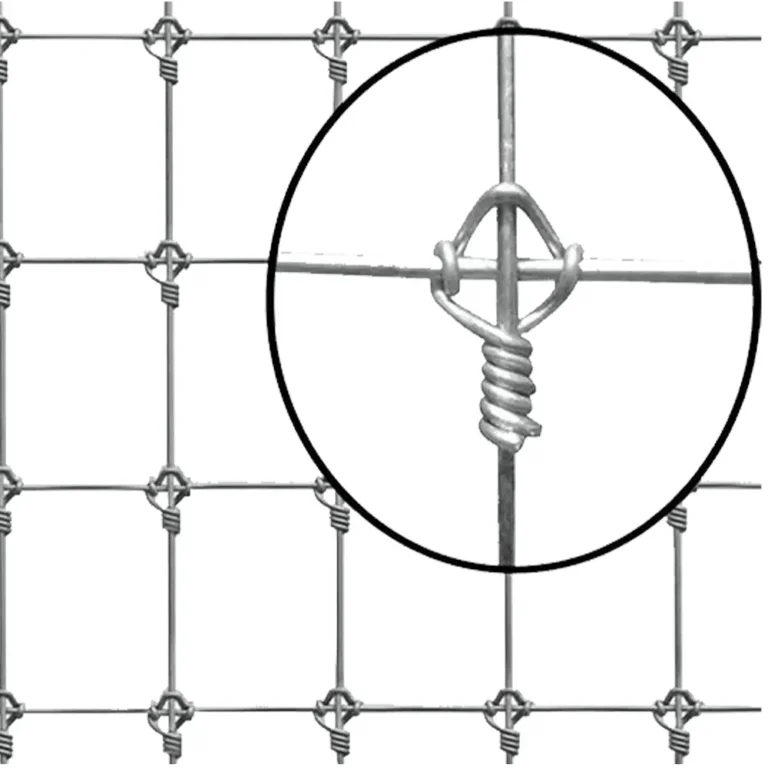

This product is different from other wire mesh products because of its unique fixed knot structure. The connections of the product are tightly wound and knotted with metal wires, thus ensuring extremely high stability and safety. This design allows it to spread around and remain secure when impacted. Product has a wide range of uses, such as garden fences farm fences, and security protection areas.
The product uses high-strength carbon steel wire, which has extremely high strength and toughness. In addition, electro-galvanizing or hot-dip galvanizing ensures its anti-rust and anti-oxidation capabilities, making it very durable and stable. Exquisite manufacturing technology makes the product almost maintenance-free and has a longer service life.
We have a variety of sizes to choose from to suit different screen usage scenarios. At the same time, as a professional manufacturer, we can customize products according to needs or usage scenarios, including size, material, and knotting type.
FENCE DEPOT is your trusted manufacturer of Wire Mesh. For more information about our cyclone fixed-knot woven wire fence including stock availability, please feel free to contact us at +86 16678596616 or email at [email protected]. We’re here to help.
Product Specification:
| Number of lines wires | Height of fence(inch) | Space between vertical wires(inch) | Wire Gauge(top and bottom wire) | Roll size |
| 13 | 48 | 3 | 12-1/2 | 48 inch high x 200ft. long |
| 13 | 48 | 6 | 12-1/2 | 48 inch high x 300ft. long |
| 9 | 49 | 6 | 12-1/2 | 49 inch high x 330ft. long |
| 9 | 49 | 12 | 12-1/2 | 49 inch high x 330ft. long |
| 10 | 60 | 6 | 12-1/2 | 60 inch high x 330ft. long |
| 15 | 61 | 3 | 12-1/2 | 61 inch high x 200ft. long |
| 15 | 61 | 6 | 12-1/2 | 61 inch high x 330ft. long |
| 17 | 75 | 6 | 12-1/2 | 75 inch high x 330ft. long |
| 14 | 78 | 6 | 14 | 78 inch high x 330ft. long |
| 16 | 90 | 6 | 14 | 90 inch high x 330ft. long |
| 20 | 96 | 3 | 12-1/2 | 96 inch high x 165ft. long |
| 20 | 96 | 6 | 12-1/2 | 96 inch high x 330ft. long |
| 20 | 96 | 12 | 12-1/2 | 96 inch high x 330ft long |
| 13 | 120 | 6 | 12-1/2 | 120 inch high x 330ft long |
Different Knot Netting Type
 |
 |
 |
| A | B | C |

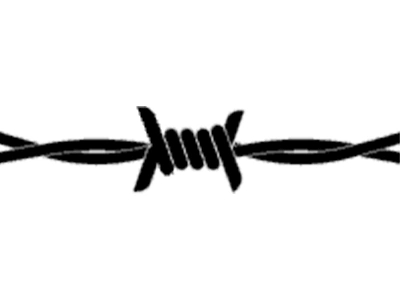

A: This is the most familiar and common barbed wire knot. It consists of two wire strands twisted together and starred with either 2- or 4-point barbs at intermittent distances.

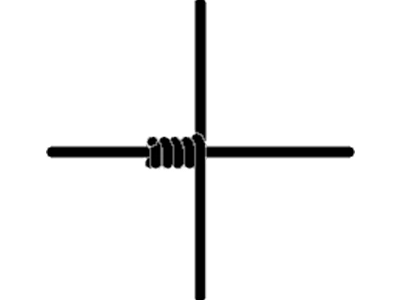

B: This is a hinged-joint knot. It’s formed by the vertical guy wire being wrapped around the main wire multiple times at each intersection.

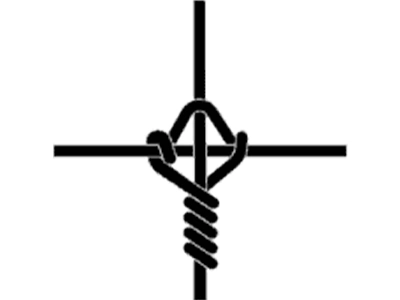

C: This is the fixed-knot woven used in our fixed-knot woven wire fence, which uses a single wire that is tightly wrapped and knotted around the main wire and the vertical guy wire. It has the highest vertical strength and will hardly move or loosen under pressure.

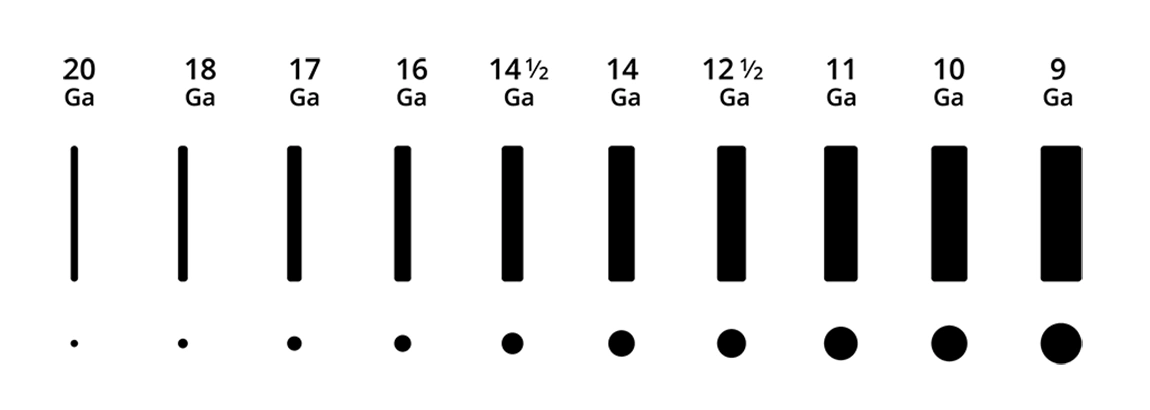

Different Wire Diameters:
The gauge in the diagram indicates the thickness or diameter of the wire. The larger the gauge number, the smaller the wire size. Smaller (thicker) gauge wires are more suitable for greater pressure and therefore for medium to large animals, etc.
We generally choose 12.5 gauge as our first choice for farm fencing applications, which is suitable for most livestock protection and farm security.

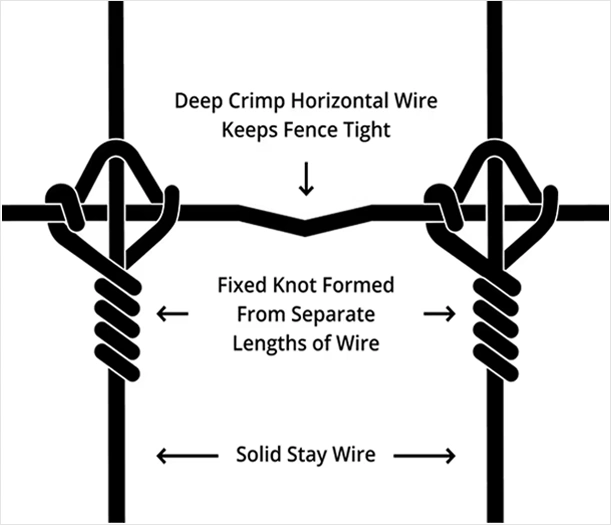

Cyclone Fixed-Knot Woven Wire Fence Details:

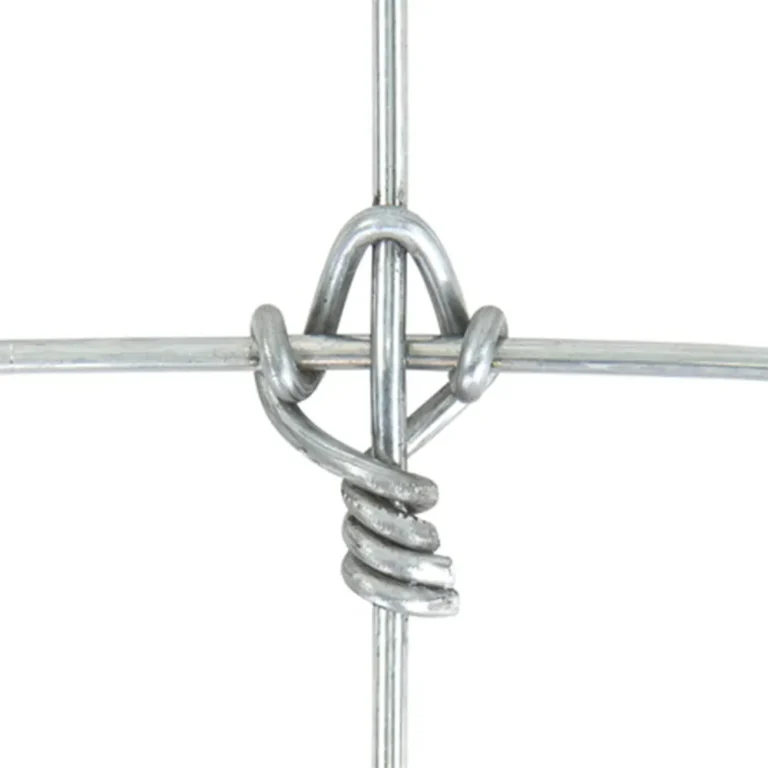

The product is made using a single wire that is tightly wound and knotted around vertical and horizontal lines.
Advantages of Cyclone Fixed-Knot Woven Wire Fence:
1. The unique knotting method makes the overall structure more stable and reliable, so it is safer.
2. The cyclone fixed-knot woven wire overall design can evenly distribute pressure and therefore remain stable under external impact.
3. It has a wide range of uses and can be used in various areas.
4. Made of high-quality high-strength galvanized steel, it is very strong and durable.
5. The advanced manufacturing process allows it to be used in various environments while requiring almost no maintenance and having a longer service life.

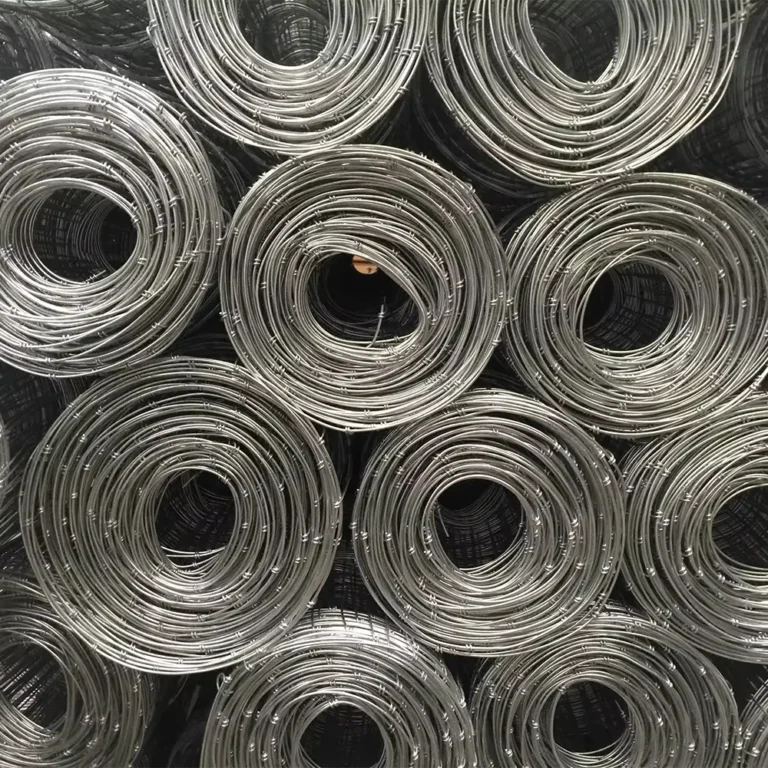

6. Specially package high tensile cyclone fixed-knot woven wire fence to ensure safe transportation and prevent operator injury.
7. The factory is large and has experienced production staff, so the delivery time is short.
