The commercial and industrial metal steel electric sliding gate provided by FENCE DEPOT is an excellent way to create a safe entry and exit point. We have a professional design and production team, so our products have strong, reliable performance and low maintenance costs.
We use galvanized steel that is chemically treated to prevent rust and corrosion, making it a durable material for our metal sliding doors. At the same time, we use a powder coating system to make our doors, the best process to protect the product from rust and corrosion. Powder coating not only enhances the durability of the product but also adds to its aesthetics.
The use of metal sliding gates can ensure property and personal safety in commercial areas or homes. It can be connected to a power source so it can be more automated. Prevent unauthorized entry to increase security. The product’s versatility makes it suitable for any secure area.
The product is available in many specifications to suit different usage scenarios. At the same time, we can customize products according to the area of use or other needs.
FENCE DEPOT is your trusted Commercial & Industrial Fence and Gate manufacturer. Additionally, for more information about our metal sliding gate, including stock availability, please feel free to contact us at +86 16678596616 or email us at [email protected]. We’re here to help.
Product Specification：
| Name | Project | ||||
| 5m electric sliding gates (2100mm x 5000mm) | Bottom frame tube specification | Quantity and length | Outer frame tube specification | Quantity | Material |
| 100x50x3 | 1×4900 | 50x50x1.6 | 2×2100 | Aluminum | |
| Beam specification | Quantity | Standpipe Specifications | Quantity | ||
| 40x40x1.6 | 3×4900 | 25x25x1.2 | 36×2020 | ||
| 7m electric sliding gates (2100mm x 7000mm) | Bottom frame tube specification | Quantity and length | Outer frame tube specification | Quantity | Material |
| 100x50x3 | 1×3500 | 50x50x3 | 2×2100 | Aluminum | |
| Beam specification | Quantity | Standpipe Specifications | Quantity | ||
| 50x50x3 | 3×3400 | 25x25x1.2 | 24×2020 | ||
| 7.5m electric sliding gates (2100mm x 7500mm) | Bottom frame tube specification | Quantity and length | Outer frame tube specification | Quantity | Material |
| 100x50x3 | 1×3750 | 50x50x3 | 2×2100 | Aluminum | |
| Beam specification | Quantity | Standpipe Specifications | Quantity | ||
| 50x50x3 | 3×3650 | 25x25x1.2 | 26×2020 | ||
| 9m electric sliding gates (2100mm x 9000mm) | Bottom frame tube specification | Quantity and length | Outer frame tube specification | Quantity | Material |
| 100x50x3 | 1×4500 | 50x50x3 | 2×2100 | Aluminum | |
| Beam specification | Quantity | Standpipe Specifications | Quantity | ||
| 50x50x3 | 3×4400 | 25x25x1.2 | 32×2020 | ||
| 12m electric sliding gates (2100mm x 12000mm) | Bottom frame tube specification | Quantity and length | Outer frame tube specification | Quantity | Material |
| / | / | 65x65x2 | 2×2000 | Galvanized steel | |
| Beam specification | Quantity | Standpipe Specifications | Quantity | ||
| 65x65x2 | 3×2935 | 25x25x1.2 | 23×1935 | ||

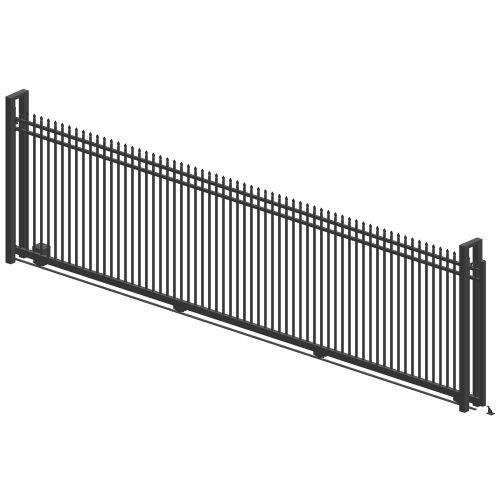

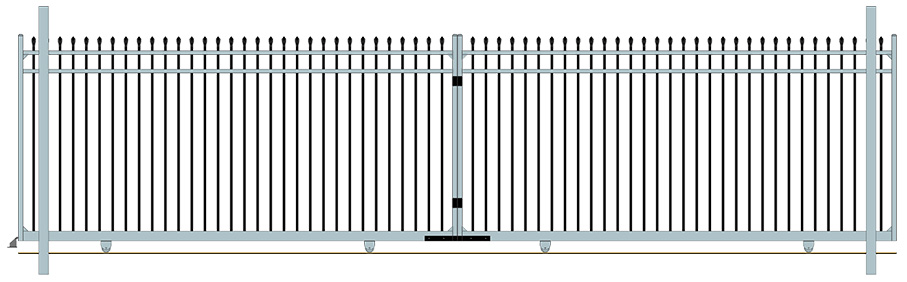

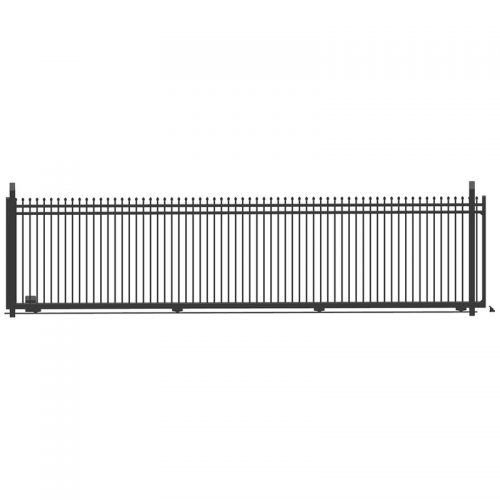

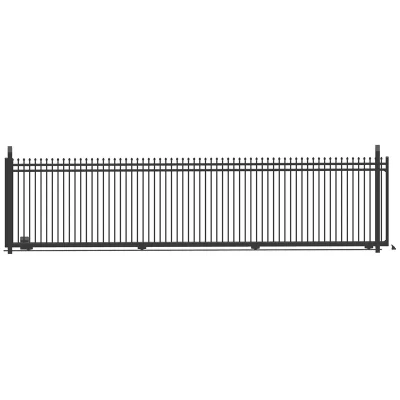

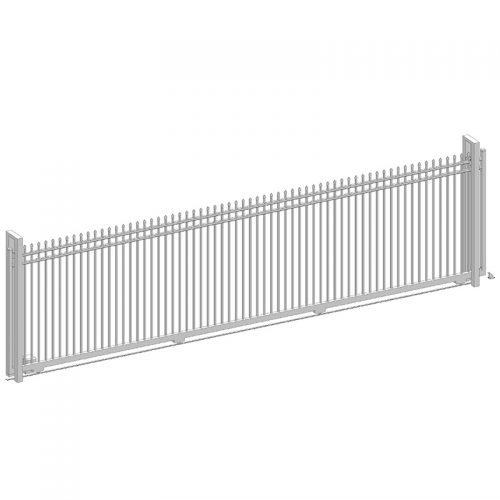

Product Drawings:
If you are looking for durable and high-quality electric metal sliding gate products, please do not hesitate to contact us.
Product Customizable Specification List:
| Dimensions | Width, Height, Vertical Pipe Size |
| Square Tube Part | Outer Diameter, Wall Thickness |
| Material | Aluminum, Zinc Steel, or Other |
| Surface Treatment | Spraying or Other |
| Guide Rail Type | Flat Push, Hanging |
| Other | Gate lengths exceeding 6 meters require splicing. |
Advantages of Metal Steel Sliding Gate:
1. Durable and Affordable:
The product combines strength, corrosion resistance, and affordability, making it an ideal choice for both commercial and industrial properties.
2. Versatile Material Options:
Available in both galvanized steel and aluminum, the products provide versatility in material options to suit your specific needs.
3. Easy DIY Installation:
Designed for DIY installation, the high-quality product offers a convenient and cost-effective solution for property owners.
4. Sleek Black Powder Coating:
Enhancing the gate’s appearance while providing added protection against corrosion and weather, the product comes with a sleek black powder coating.
5. Weld-Free Design:
With a weld-free metal steel sliding gate design, the product eliminates the need for welding during installation, resulting in a safer and quicker process.

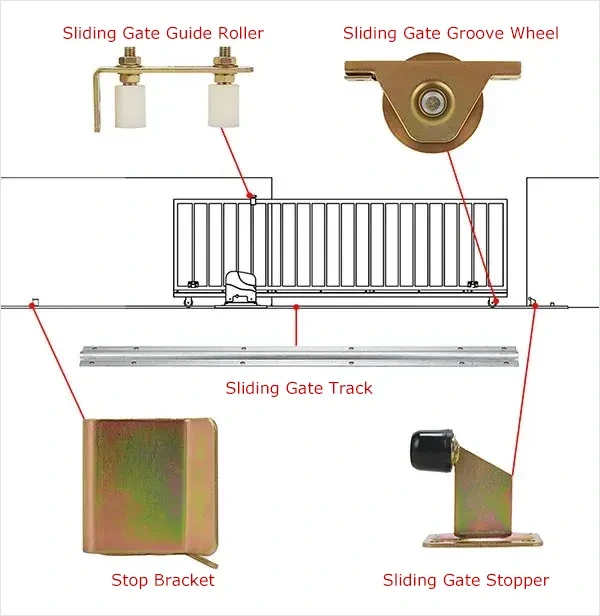

Various Components of Sliding Gate System:
Use the Guide Roller Kit, Stop Bracket, Roller Wheel Kit, Sliding Gate Track Kit, and Gate Stopper together to form a complete sliding door system, making it easier, smoother, and more convenient to use.

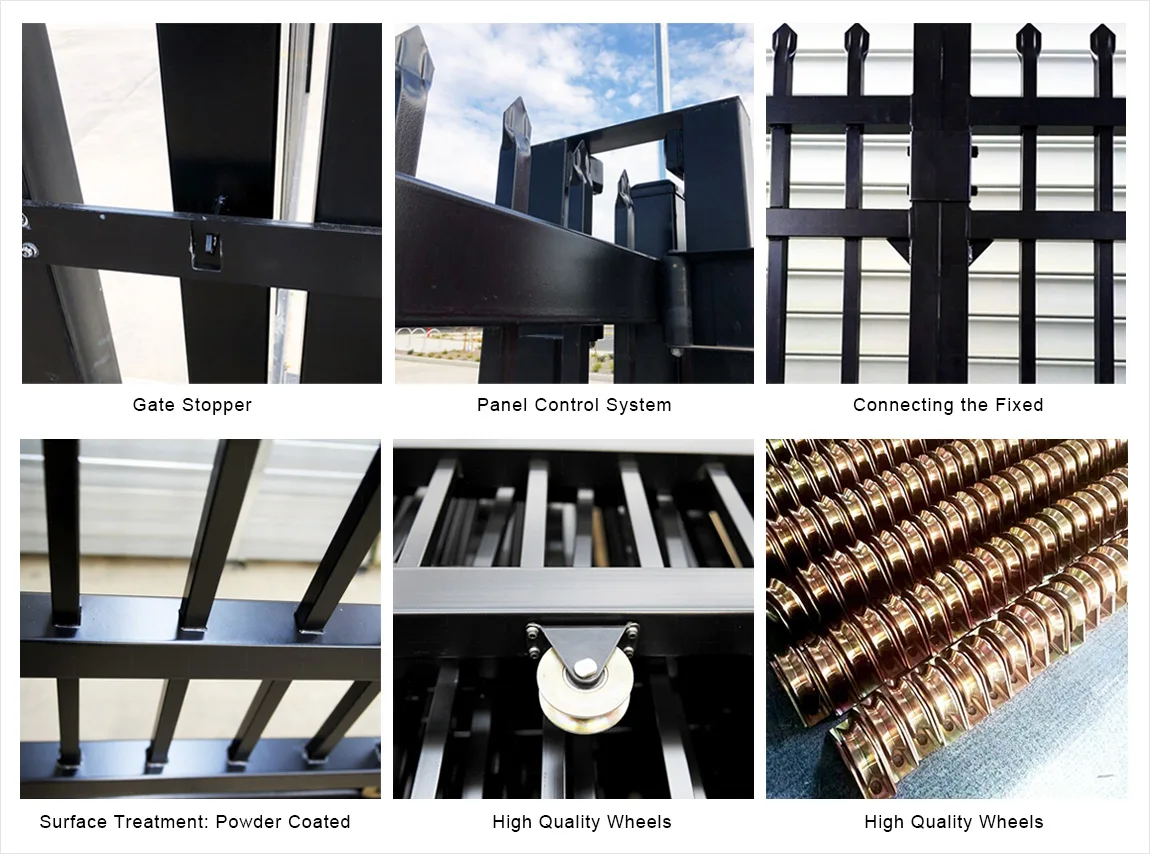

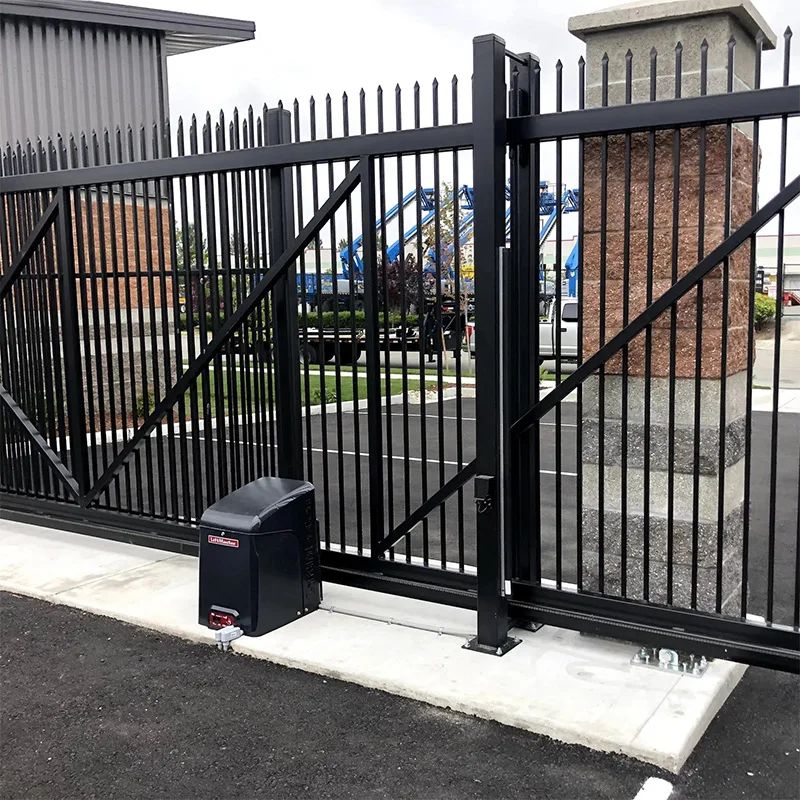

Electric Metal Steel Sliding Gate Details:
1. The overall structure is very convenient and easy to use.
2. The frame structure design makes the overall structure very stable and reliable, and smoother and smoother.
3. The powder-coated surface has excellent rust and corrosion resistance and has a longer service life.
4. High-quality pulleys are more stable during use.

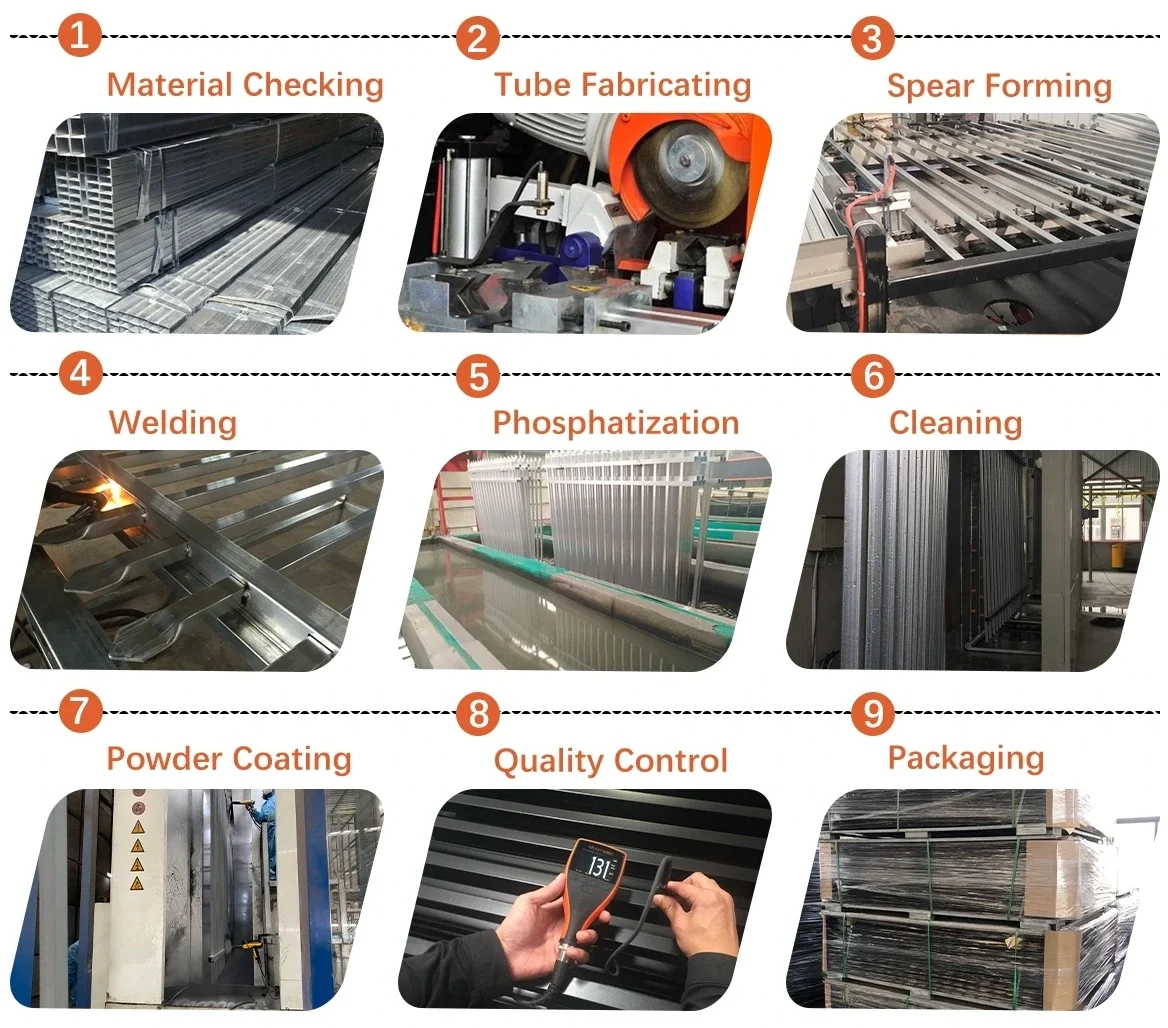

Production Scenario:
1. Material inspection:
Check whether the outer diameter and wall thickness of the pipe meet the requirements of the product drawing, thus fundamentally ensuring quality.
2. Pipe manufacturing:
Cut the pipe to meet the length requirements on the drawing.
3. Spear forming:
The top of the pipe is flattened and squeezed so that it achieves the spear-shaped pressed spears of the sliding gate.
4. Welding:
The pre-galvanized steel pipes are spliced into frames and welded.
5. Phosphatization:
The purpose of phosphating the surface of the product is to form a dense layer of pits on the surface of the pipe, thus increasing the adhesion of the powder.
6. Cleaning:
Treat surface residues or impurities to ensure the next step of the process.
7. Powder coating:
The surface of the product is sprayed with epoxy-polyester powder and cured at high temperatures. This process makes the product’s paint film thickness at least ≥80μm. This process can make the product more rust-proof and corrosion-resistant, so it can withstand the erosion of various harsh environments.
8. Quality control:
We will conduct a quality inspection on each piece of powder-coating metal steel sliding driveway gate to check the strength, wall thickness, and powder-coating thickness to ensure the quality stability of each product. We will be responsible for every product so that customers can get the best quality products.

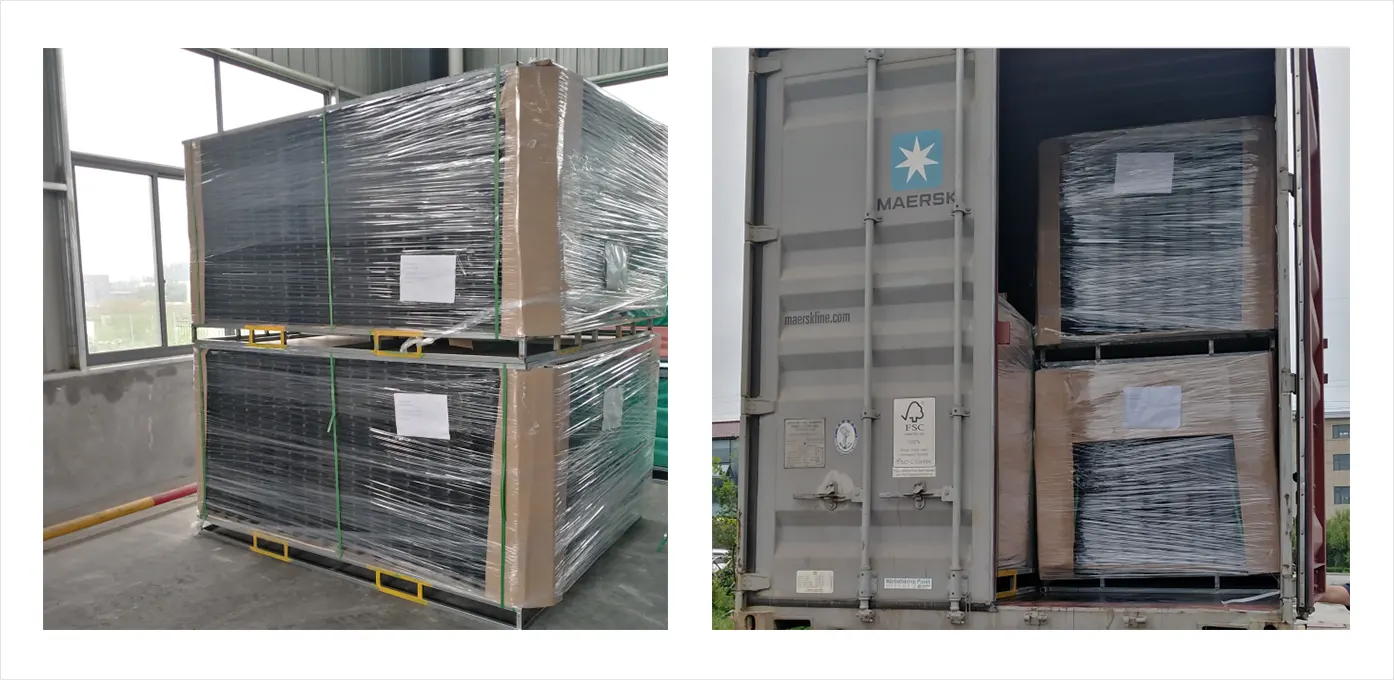

9. Packaging:
We use wrapping film + square cardboard + strapping tape to ensure safe transportation.
