The production of aluminum pool fences is a highly detailed process that requires precision at every stage. From raw material inspection to packaging, each step ensures the creation of a durable and visually appealing fence that meets both safety standards and aesthetic demands. As a professional fence manufacturer, we provide not only expertise in the aluminum pool fence production process but also extensive customization options to suit any project. This blog explores the 8-step details of the aluminum pool fence production process, the related accessories like posts, post caps, and clamps, and the wide range of customization options available to meet your specific requirements.
Aluminum Pool Fence Production Process

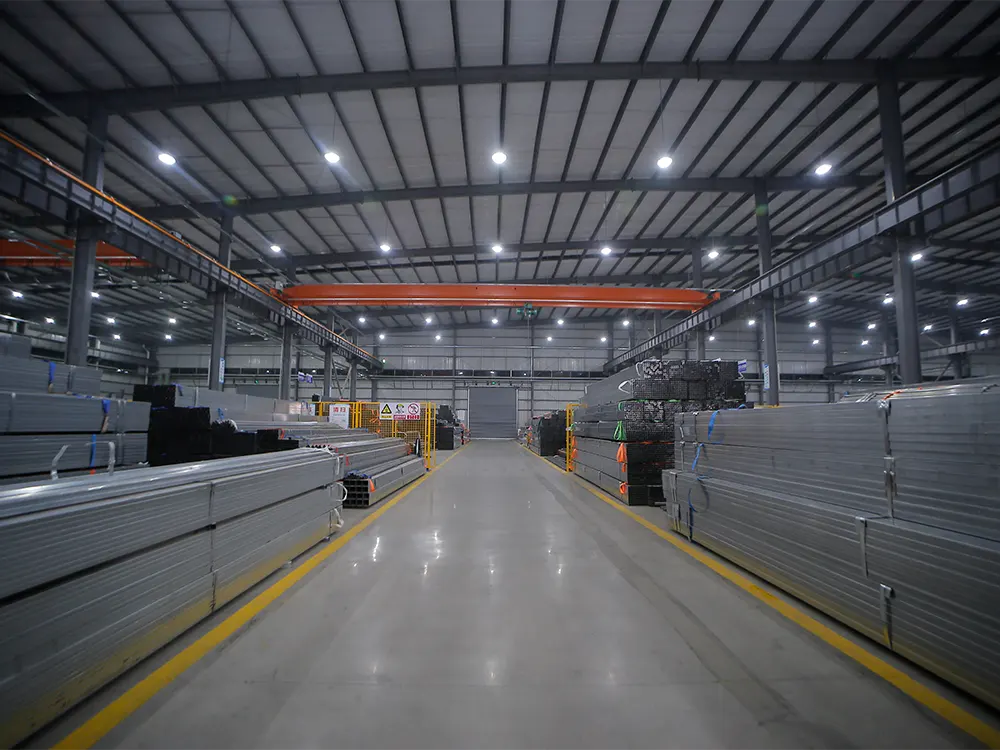

1. Raw Material Inspection
The first step in aluminum pool fence production involves a thorough inspection of the raw materials, specifically the aluminum tubes. We verify the outer diameter, wall thickness, and other dimensions to ensure compliance with specifications. Any deviation can affect the structural integrity of the fence, so rigorous checks are performed. The aluminum used must meet industry standards for strength and corrosion resistance, which is crucial for pool environments.

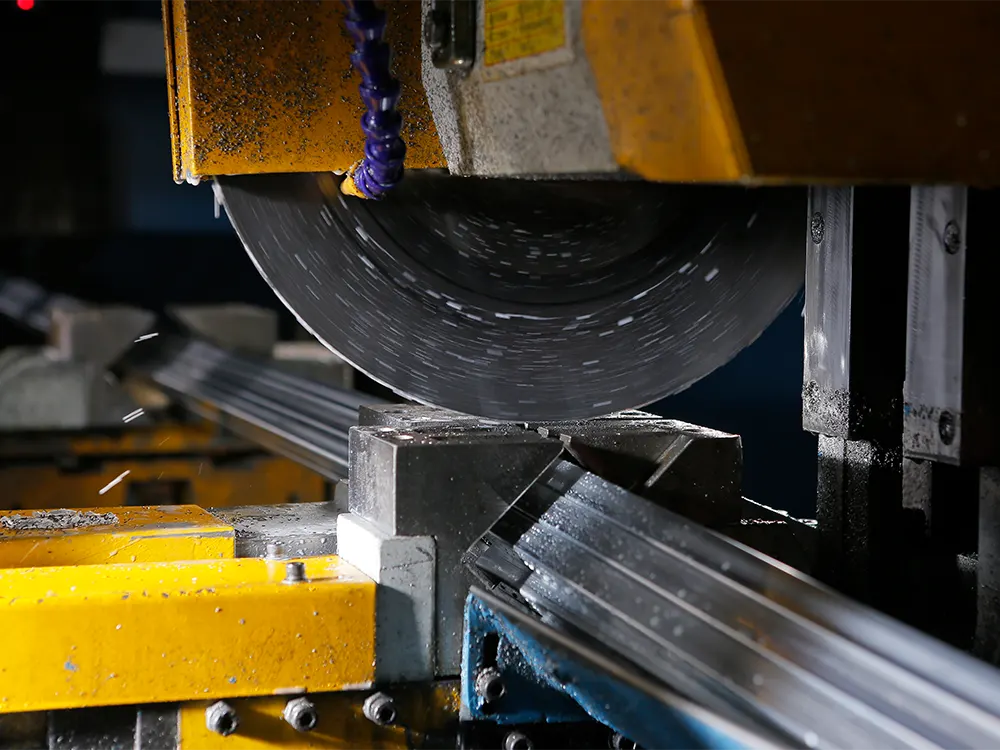

2. Material Cutting
Once the raw material passes inspection, the aluminum tubes—both round and square—are cut to the required lengths according to the design specifications. Precision cutting is essential to ensure that all components fit together seamlessly during assembly. This step involves advanced cutting machines that guarantee accuracy and reduce material waste, thereby optimizing the production process.

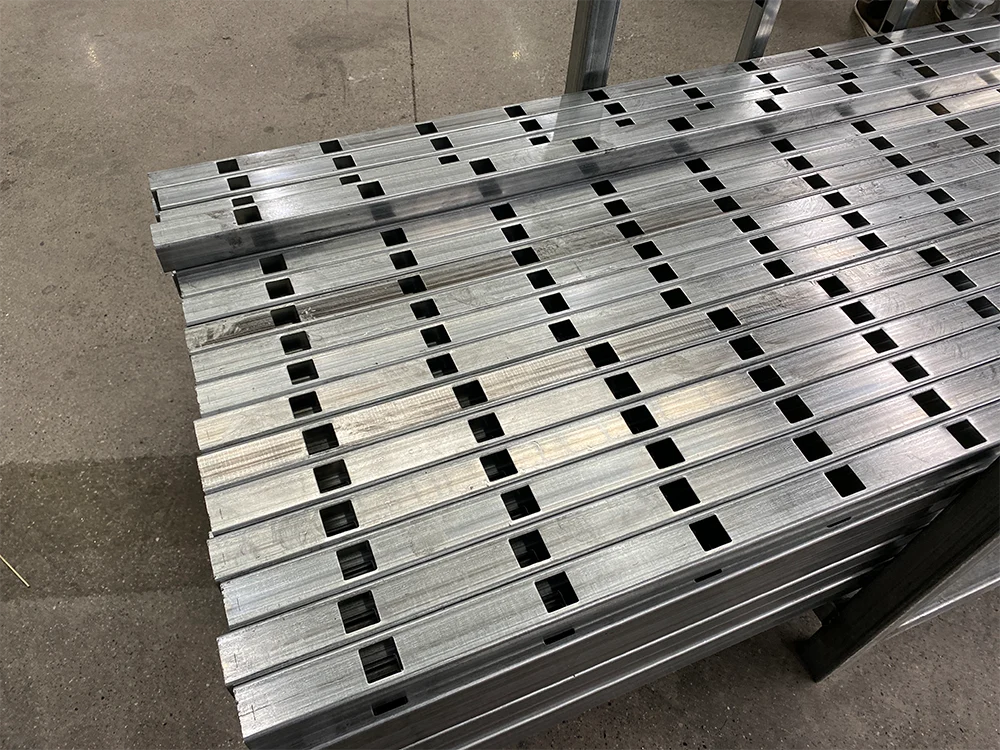

3. Beam Punching
The horizontal beams are then subjected to punching, where holes are created for the vertical tubes to be inserted. This step requires precision, as the hole spacing must match the design exactly to ensure structural stability. Additionally, any misalignment at this stage can cause problems during the welding and assembly processes.

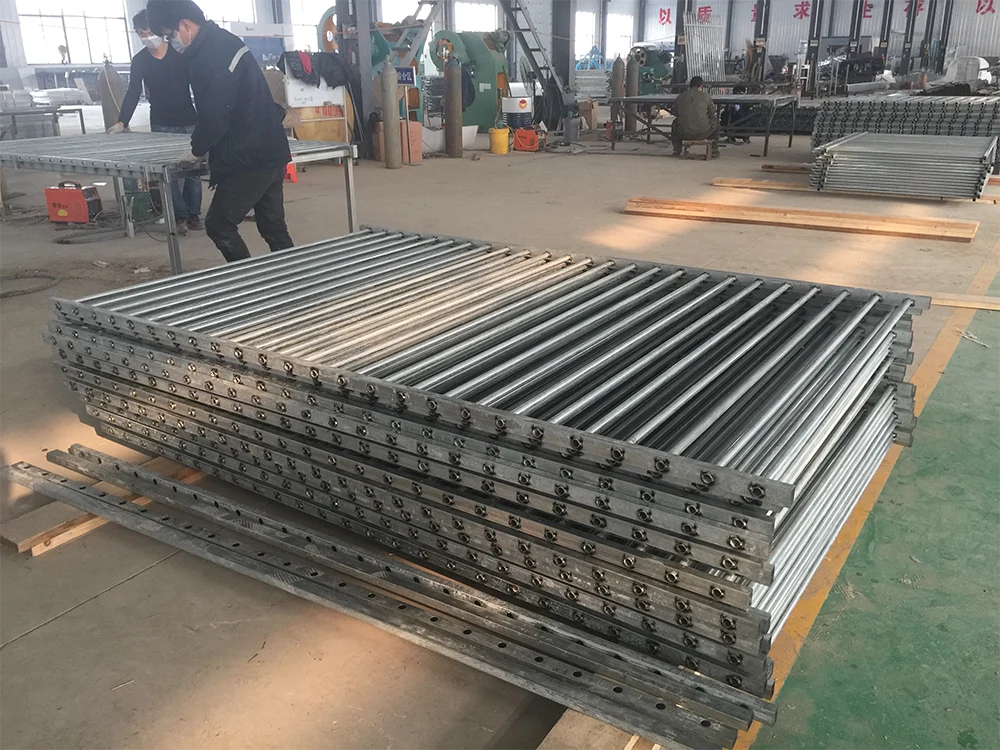

4. Welding
In this step, the vertical tubes are welded to the horizontal beams. The top beam features blind holes, while the bottom beam has through holes. The vertical tubes are single-sided welded to the top beam and double-sided welded to the bottom beam. Maintaining proper tube spacing and ensuring the vertical tubes remain perfectly level are critical for a professional finish. Skilled technicians oversee the welding process to prevent defects and ensure each weld is solid and visually appealing.

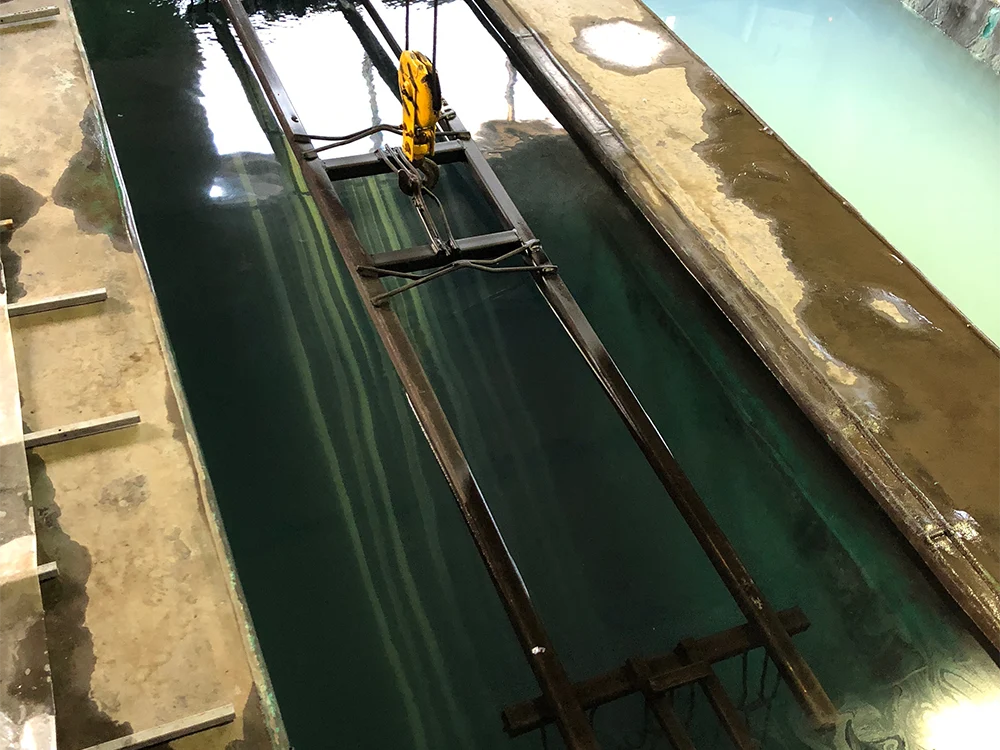

5. Chromate-free Passivation
After welding, the aluminum fence undergoes chromate-free passivation. This process enhances the fence’s resistance to corrosion without using hazardous chemicals, making it environmentally friendly. It forms a protective layer that prolongs the lifespan of the aluminum, ensuring the fence remains resilient against moisture and pool chemicals.

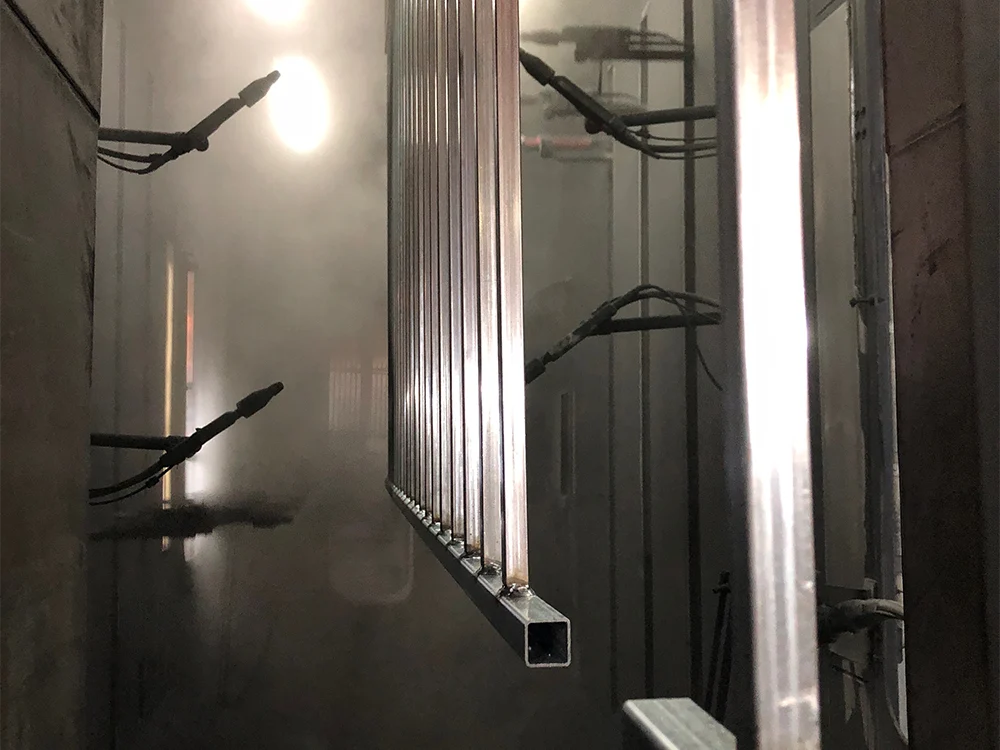

6. Powder Coating
The next step is applying an epoxy polyester powder coating, which adds both color and additional protection. The coating thickness reaches at least 80μm, ensuring a durable, smooth finish that resists chipping, scratching, and fading. This step also allows customization in terms of colors and finishes, making it suitable for various aesthetic preferences.

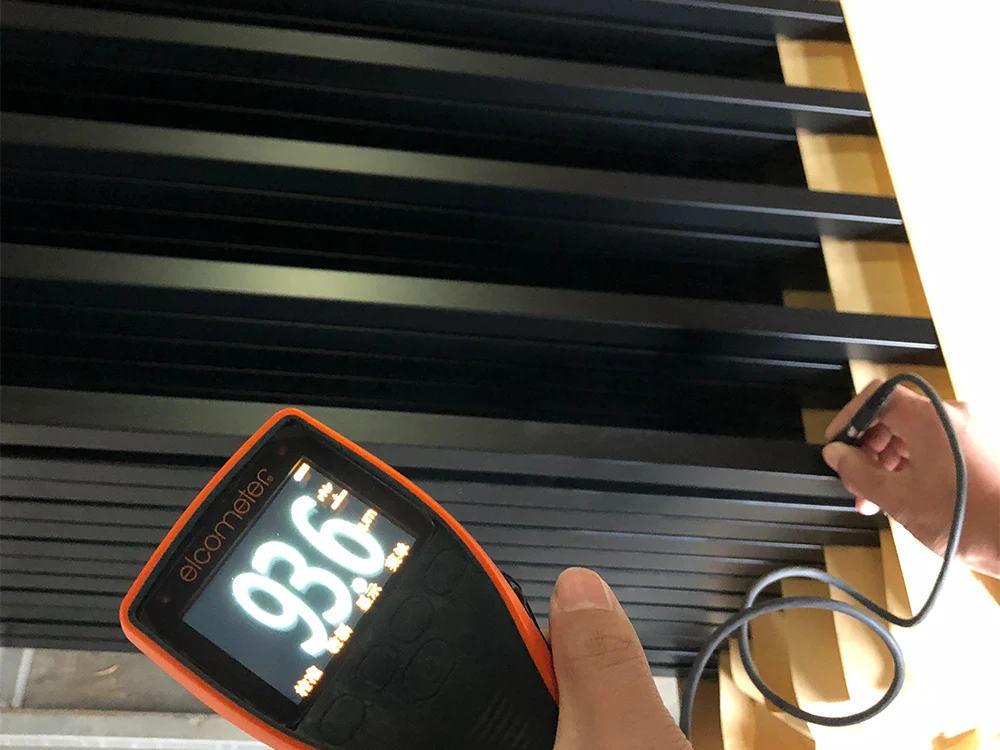

7. Quality Control Inspection
Before the fences are packaged, they undergo a comprehensive quality control inspection. Each fence is examined for defects in welding, coating, and overall dimensions. Inspectors ensure that the fences meet all quality standards, and any product that doesn’t pass is either reworked or discarded. This meticulous inspection guarantees that only the highest-quality fences leave the production floor.

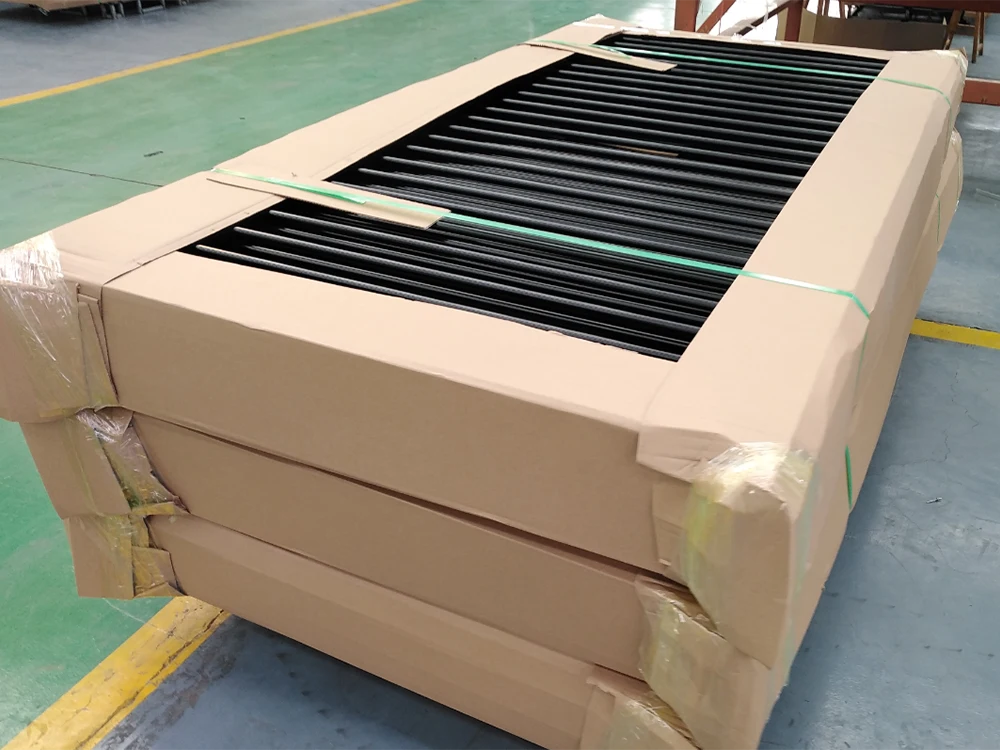

8. Packaging
Finally, the aluminum pool fences are packaged for shipment. The packaging process involves wrapping the fences with stretch film and adding cardboard for extra protection. The entire package is then reinforced with thicker stretch film, secured onto iron pallets, and shielded by four corner cardboard protectors. To prevent movement during transportation, plywood or iron frames are used between two pallets. This ensures the fences arrive at their destination in pristine condition.
Related Accessories and Their Roles
Posts:
Posts serve as the structural backbone of the aluminum pool fence, providing stability and anchoring the fence panels. They are spaced at regular intervals, determined by the fence design, and are installed securely into the ground or existing surfaces. The posts must be strong enough to handle environmental stresses, such as wind loads and physical impact.
Post caps are installed on top of the posts to provide a sleek, finished look. They also prevent water, dirt, and insects from entering the hollow posts, protecting the internal structure from corrosion. Post caps are often powder-coated to match the color of the fence and enhance the overall aesthetic.
Clamps play a crucial role in attaching the fence panels to the posts. They ensure a secure, tight connection that holds the fence panels in place while allowing for flexibility during installation. Clamps must be durable and resistant to outdoor elements, as they bear the weight of the panels and maintain the structural integrity of the fence over time.
Customization Options for Aluminum Pool Fence Production
In addition to the standard production process, one of the key advantages of aluminum pool fences is their high level of customization. Our company offers extensive options to meet specific project requirements. Below are the primary areas in which we provide customizable features:
1. Fence Dimensions
The dimensions of the aluminum pool fence can be fully tailored to fit the specific needs of the project.
– Width: The width of the fence panels can vary depending on the spacing and design requirements of the installation site. Standard widths range from 1.8 meters to 2.4 meters, but we can customize them to suit smaller or larger areas.
– Height: Custom fence heights are available to comply with local pool safety regulations or aesthetic preferences. Whether the requirement is for low fencing or higher barriers, our fence heights typically range from 1.2 meters to 1.8 meters but can be adjusted as needed.
2. Horizontal Beams
The horizontal beams provide structural integrity and are available in various sizes to accommodate different design preferences and strength requirements.
– Outer Diameter: We offer horizontal beams in a variety of outer diameters, such as 32mm, 38mm, or custom diameters depending on the specific structural needs.
– Wall Thickness: The thickness of the horizontal beams can be customized, with standard options ranging from 1.5mm to 2.0mm. This allows the beams to support heavier loads or withstand harsh environmental conditions.
– Quantity: Depending on the design, fences can be constructed with two, three, or more horizontal beams. The number of beams contributes to both the fence’s strength and aesthetic appeal.
3. Vertical Tubes
Vertical tubes are essential for creating the slat pattern in aluminum pool fences. Their size and quantity can be customized to meet both functional and aesthetic requirements.
– Outer Diameter: The vertical tubes can be produced with diameters ranging from 16mm to 25mm. Larger diameters provide a sturdier appearance, while smaller diameters offer a more delicate look.
– Wall Thickness: Customizable wall thicknesses are available, typically between 1.0mm to 1.5mm, to ensure the right balance between strength and visual lightness.
– Quantity: The number of vertical tubes can vary based on the desired spacing and overall design. Closer spacing enhances privacy, while wider spacing offers a more open look. This customization allows for flexibility based on the pool’s design and safety requirements.
4. Welding Techniques
Welding methods significantly impact both the appearance and durability of aluminum pool fences. We offer various welding options:
– Single-side Welding: This method involves welding the tubes or beams on one side, creating a sleek, minimalist appearance.
– Double-sided Welding: In this technique, both sides of the joint are welded, which adds strength and rigidity, particularly useful in high-stress environments.
– Single-sided Circumferential Welding: This process involves welding around the entire circumference of the connection, ensuring maximum strength while maintaining a clean aesthetic.
– Welding Length: The length of the weld can also be customized based on the design and strength requirements of the fence. Longer welds provide enhanced structural stability.
5. Surface Treatments
Surface treatment is crucial for the longevity and aesthetic appeal of the fence. We provide a variety of surface treatment options:
– Topcoat Only: For projects where cost-efficiency is key, a single layer of topcoat powder can be applied. This still provides protection against corrosion and a smooth finish.
– Primer + Topcoat: For enhanced durability, a primer layer is applied first, followed by a topcoat. This method provides superior resistance to rust and environmental damage, ensuring the fence lasts longer, especially in regions exposed to pool chemicals and moisture.
– Special Requirements: We can accommodate requests for specific types of powder coatings, including UV-resistant finishes, anti-graffiti coatings, or custom colors that align with the overall design theme.
6. Posts
Posts are the primary support structures for the fence. They are available in various customizable dimensions:
– Outer Diameter: Common post diameters range from 40mm to 60mm, depending on the strength and appearance desired. Larger posts offer greater stability, especially in high-wind areas.
– Wall Thickness: Posts are typically produced with a wall thickness of 1.8mm to 2.5mm, but this can be adjusted to suit heavier-duty applications.
– Length: The length of the posts depends on the fence height and installation method (e.g., in-ground or surface-mounted). We offer custom post lengths to ensure the fence is securely installed in various terrains.
7. Post Caps
Post caps serve both functional and aesthetic purposes. They protect the post from moisture and debris while adding a finished look to the fence.
– Standard Caps: We offer standard post caps that provide a sleek, modern appearance and sufficient protection for the hollow posts.
– Custom Caps: For projects that require a unique design, we provide custom post caps in various shapes and finishes. Whether you need rounded, flat, or decorative caps, we can tailor them to match the fence style.
8. Clamps
Clamps are vital for securely attaching the fence panels to the posts. We provide various types of clamps based on installation requirements:
– Double-wing Four-hole Clamps: These clamps offer maximum security, with four mounting holes ensuring the fence is firmly attached to the post. They are ideal for high-traffic or high-stress areas.
– Single-wing Two-hole Clamps: For simpler installations, we offer single-wing clamps with two holes. These are easier to install and are suitable for lighter-duty applications.
– Self-tapping Screws: Our clamps come with self-tapping screws that match the size and style of the fence. The number of screws provided is adjusted based on the size and weight of the panels being attached.
Why Choose Our Aluminum Pool Fences?
Our aluminum pool fences stand out due to the following key advantages:
1. High Customizability: We offer extensive options for customization, ensuring that the fence can be tailored to fit specific design and functional needs, from panel dimensions to specialized accessories.
2. Durability and Strength: With a variety of surface treatments, welding methods, and post designs, our aluminum fences are built to last, even in challenging environments like pool areas exposed to moisture and chemicals.
3. Aesthetic Flexibility: Custom colors, finishes, and post caps allow our aluminum fences to blend seamlessly with any landscape or architectural design, providing both beauty and functionality.
4. Expert Craftsmanship: Our experienced team ensures that every detail, from the precision welding to the quality of materials used, meets the highest standards of fence manufacturing.
Conclusion
Whether you are looking for standard aluminum pool fences or highly customized solutions, our company has the expertise and capability to deliver a product that exceeds expectations. By combining advanced manufacturing techniques with a focus on customer satisfaction, we create pool fences that are not only safe but also enhance the beauty of the surrounding space. Trust us to be your partner in delivering exceptional quality and design tailored to your specific needs.
